Standard Series

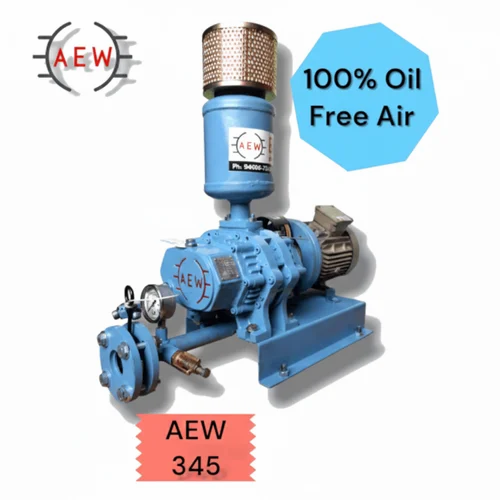

Tri Lobe Root Blower

AEW Tri Lobe Blowers feature a three-lobe rotor design that delivers smoother, more consistent airflow with reduced pulsation compared to twin lobe designs. Ideal for noise-sensitive applications requiring steady, pulse-free air supply.

Pressure Range

1,000 – 6,000 mmWC

Flow Range

26 – 351 m³/hr

Series

Standard Series

Key Features

Three-lobe rotor design for reduced pulsation
Smoother airflow with lower noise levels
EN-19 alloy steel shafts larger than industry standard
100% genuine SKF bearings
Extended bearing support on pulley side
Both-side oil design for effective cooling
100% oil-free air delivery
Every blower tested per BS 1571 Part II

Applications

Effluent Treatment Plants
Aquaculture & Fish Farming
Food & Beverage Processing
Electroplating Plants
Paper Plants

Performance Data

Typical operating figures at standard atmospheric conditions. Flow in m³/hr, pressure in mmWC, power in BHP.

Speed (RPM)	Pressure (mmWC)	Flow (m³/hr)	Power (BHP)
AEW 42 — Inlet/Outlet: 40 NB
800	1,000	59	0.6
	2,000	50	0.9
	3,000	43	1.2
	4,000	37	1.5
	5,000	31	1.8
	6,000	26	2.1
1000	1,000	79	0.8
	2,000	70	1.1
	3,000	63	1.5
	4,000	57	1.9
	5,000	52	2.3
	6,000	47	2.6
1200	1,000	100	0.96
	2,000	91	1.4
	3,000	83	1.8
	4,000	77	2.3
	5,000	72	2.7
	6,000	67	3.2
1400	1,000	120	1.1
	2,000	111	1.6
	3,000	104	2.1
	4,000	98	2.6
	5,000	93	3.2
	6,000	88	3.7
AEW 44 — Inlet/Outlet: 65 NB
800	1,000	89	0.8
	2,000	76	1.2
	3,000	67	1.7
	4,000	59	2.1
	5,000	52	2.5
	6,000	45	3
1000	1,000	118	1
	2,000	106	1.6
	3,000	96	2.1
	4,000	88	2.7
	5,000	81	3.2
	6,000	75	3.7
1200	1,000	148	1.2
	2,000	136	1.9
	3,000	126	2.5
	4,000	118	3.2
	5,000	111	3.8
	6,000	104	4.5
1400	1,000	178	1.4
	2,000	165	2.2
	3,000	156	2.9
	4,000	148	3.7
	5,000	140	4.5
	6,000	134	5.2
AEW 45 — Inlet/Outlet: 80 NB
800	1,000	111	1
	2,000	95	1.5
	3,000	83	2.1
	4,000	73	2.6
	5,000	64	3.2
	6,000	56	3.7
1000	1,000	148	1.2
	2,000	132	1.9
	3,000	120	2.6
	4,000	110	3.3
	5,000	102	3.9
	6,000	94	4.6
1200	1,000	185	1.5
	2,000	170	2.3
	3,000	158	3.1
	4,000	148	3.9
	5,000	139	4.8
	6,000	130	5.6
1400	1,000	222	1.8
	2,000	207	2.7
	3,000	195	3.7
	4,000	185	4.6
	5,000	176	5.5
	6,000	168	6.5
AEW 47 — Inlet/Outlet: 80 NB
800	1,000	166	1.3
	2,000	143	2.1
	3,000	125	3
	4,000	110	3.8
	5,000	97	4.6
	6,000	85	5.4
1000	1,000	222	1.7
	2,000	199	2.7
	3,000	181	3.7
	4,000	166	4.7
	5,000	152	5.7
	6,000	140	6.8
1200	1,000	278	2
	2,000	255	3.2
	3,000	237	4.5
	4,000	221	5.7
	5,000	208	6.9
	6,000	196	8.1
1400	1,000	333	2.4
	2,000	310	3.8
	3,000	292	5.2
	4,000	277	6.7
	5,000	264	8.1
	6,000	252	9.5
AEW 53 — Inlet/Outlet: 65 NB
800	1,000	141	1.4
	2,000	123	2.1
	3,000	109	2.8
	4,000	97	3.5
	5,000	87	4.2
	6,000	77	4.8
1000	1,000	188	1.8
	2,000	169	2.7
	3,000	155	3.5
	4,000	144	4.4
	5,000	133	5.2
	6,000	124	6
1200	1,000	234	2.2
	2,000	216	3.2
	3,000	202	4.2
	4,000	190	5.2
	5,000	180	6.2
	6,000	170	7.3
1400	1,000	281	2.5
	2,000	262	3.7
	3,000	248	4.9
	4,000	237	6.1
	5,000	226	7.3
	6,000	217	8.5
AEW 55 — Inlet/Outlet: 80 NB
800	1,000	177	1.7
	2,000	154	2.5
	3,000	136	3.4
	4,000	121	4.2
	5,000	108	5
	6,000	97	6
1000	1,000	235	2.1
	2,000	212	3.2
	3,000	194	4.2
	4,000	180	5.3
	5,000	167	6.4
	6,000	155	7.4
1200	1,000	293	2.6
	2,000	270	3.8
	3,000	252	5.1
	4,000	237	6.4
	5,000	224	7.6
	6,000	213	9
1400	1,000	351	3
	2,000	328	4.5
	3,000	310	6
	4,000	295	7.4
	5,000	283	9
	6,000	271	10.4
AEW EXPO-55 — Inlet/Outlet: 80 NB
800	1,000	177	1.7
	2,000	154	2.5
	3,000	136	3.4
	4,000	121	4.2
	5,000	108	5
	6,000	97	6
1000	1,000	235	2.1
	2,000	212	3.2
	3,000	194	4.2
	4,000	180	5.3
	5,000	167	6.4
	6,000	155	7.4
1200	1,000	293	2.6
	2,000	270	3.8
	3,000	252	5.1
	4,000	237	6.4
	5,000	224	7.6
	6,000	213	9
1400	1,000	351	3
	2,000	328	4.5
	3,000	310	6
	4,000	295	7.4
	5,000	283	9
	6,000	271	10.4
